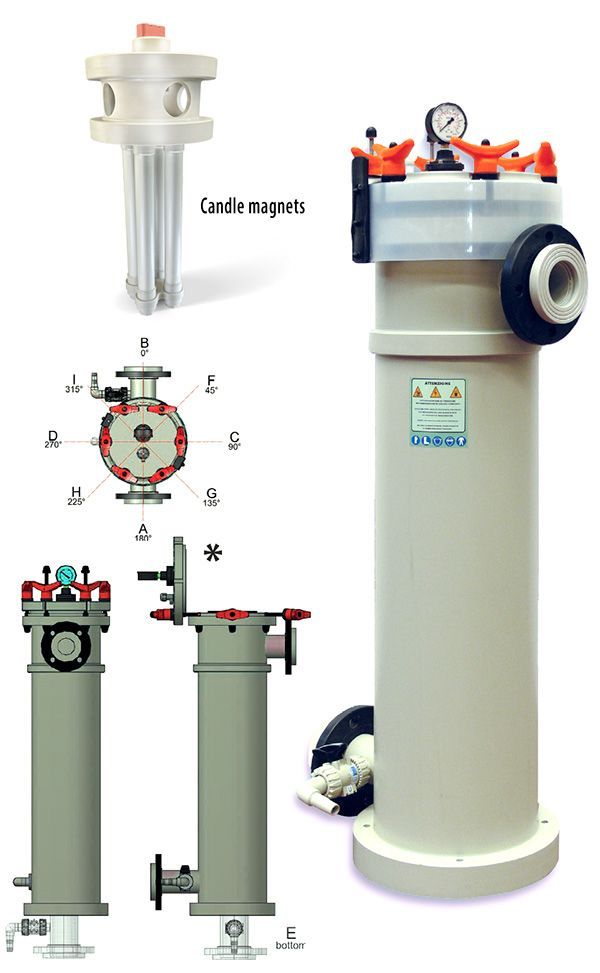

Magnetic Filter Housing:

ADVANTAGES:
• Rugged construction
• Inert at chemicals
• Magnetic filter housing
• Captures ferrous particles down to sub-micron dimensions
• 100% cleanability, no replacement due to prolonged use
• Absence of waste destined for disposal
• Suitible for contact with food substances thanks to the PP coating.

Download PDF Specs

FEATURES:
• PP solid monoblocc body
• PP and PVDF versions
• Swing bolts closure system with swing bolts
• Tilt lid
• Side filter body inlet
• Union or flanged connections
• SIZE 1-2-4 bags availability
• Tmax exercise PP 85°C-PVDF 100°C
• Pmax exercise: 6 Bar @ 20*C
• Pressure Gauge
• Interception by means of high magnetic flux density allows the removal of ferrous particles when the presence of the same is expected in the treated fluid.
• Neodymium magnetic candles are coated with PP over
AISI 316 stainless steel tubes and are engineered to Warco’s specific filter systems.
• They can be used as a sole stopping system, or in combination with Warco’s specific filter systems that also carry out the physical interception of particles which are not attracted by magnets.
• Magnets are encapsulated in PP and PVDF sleeves.

SPECIFICATIONS:
• Material: Neodymium N45
• Candel Diameter 25mm
• Length based on filter housing
• AISl316 candle coating
• Tmax=120 °C
• Nominal flux density: 11000 Gauss

Warco Inc. – Providers of Best-Quality Thermoplastic Filtration System

We at Warco Inc. bring the durability and corrosion-resistance of SOLID Simona polypropylene or PVDF construction in our thermoplastic filtration systems, which are known for their comprehensive maintenance procedures and simplified change-out system. Corrosion-free, leak-proof, and durably fabricated thermoplastic filters from Warco Inc. have been providing years of successful service to various industrial applications. We offer an extensive range of filter designs that include horizontal disc filters, felt bags, high capacity pleated designs, standard cartridges, powder or granular carbon systems and so on. Besides being durable, corrosion-resistant, and highly efficient, thermoplastic filters from Warco Inc. have earned tremendous good will in the market due to the following superior specifications:

• Powered by seal-less magnetic drive pumps
• Equipped with CHEMTREX high capacity elements and media
• Horizontal and vertical process pumps
• Rota meters
• Power monitors
• Tilt lids

Warco Inc. has always followed the dynamism of innovation and technological supremacy in manufacturing filtration systems and pumps for varied industrial applications. Together with our excellent service provision, expert technical background, and superior field experience, we have carved our own niche in the market.
